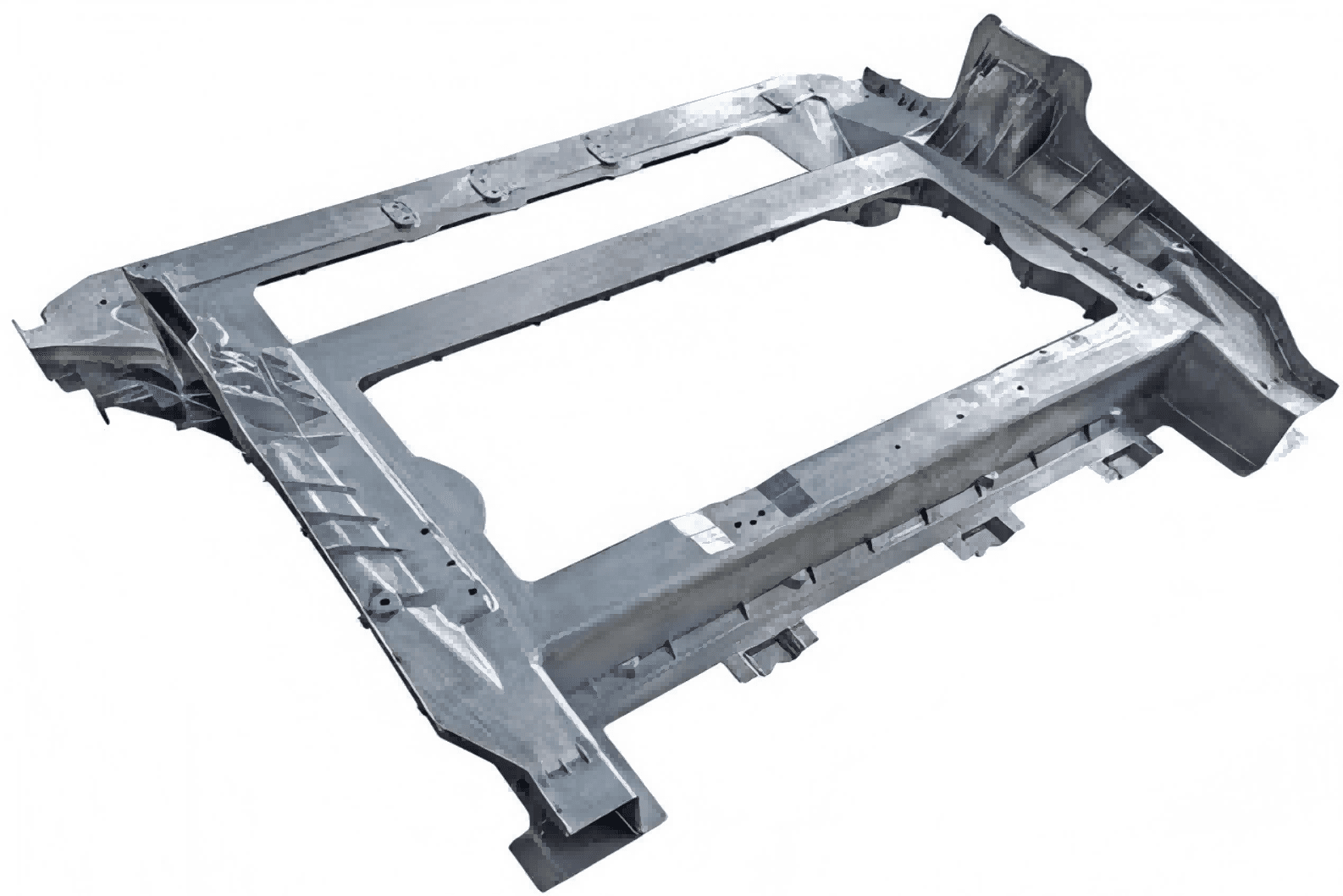

Part Dimension：1601*1568*524mm

Part Weight: 41.85 kgs

Alloy: C611

Rm:≥250 MPa

Rp0,2≥120 MPaA ≥10%

DCM Capacity：6600T/7200T

Mold dimension: 5166*3245*2071mm

Mold Weight: 132000kg

Main Challenge

Key point No.1 - Ingating area selection

Key point No.2 - High requirement of mechanical property

Key point No.3 - Air exhausted

Key point No.4 - Deformation risk
